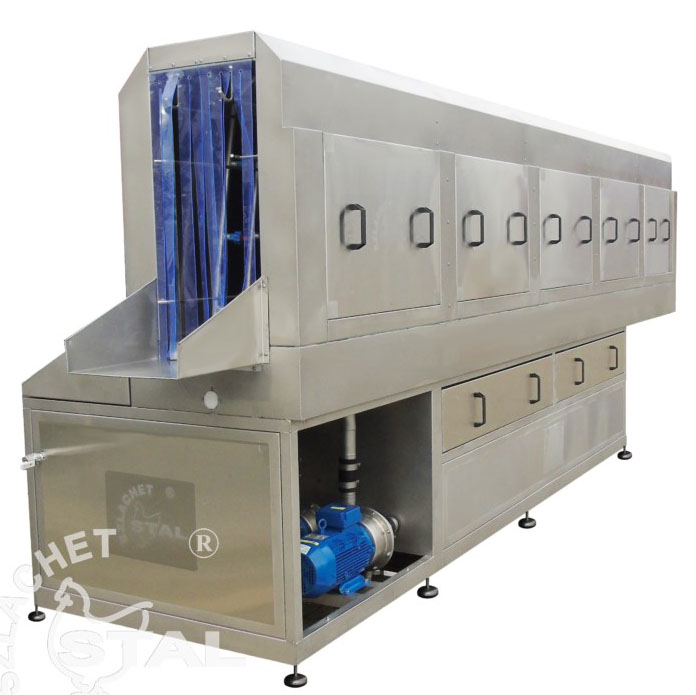

Live Bird Crate Washer

The E.M.F. live bird crate washer is positioned in the receiving area.

Equipped with a crate conveyor and a water-spray and disinfection system, the crates are cleaned very easily and efficiently.

live bird crate washerThe crates are pulled inside the washer, by a chain conveyor, where they are washed with water jets of 3-6 bars pressure.

Following the wash section the crates are rinsed. At this point disinfectants may be added by using the built-in chemical dosing pump.

The pump takes water from the main tank and pumps it to the nozzles in the washing section, where water comes back through the rotary filter.

The rotary filter separates debris and solid waste from water and takes it out to the discharging chute.

The washer is operated with cold water.

An optional drying section is available with 1 or 2 blowers, depending on the washing capacity per hour.



Technical data: Live bird crate washer

Type Shackle
distance
Capacity
Crates/h
Pump
capacity
cbm/h
Electricity
kW
Dimensions
L x W x H
MP 3000 n/a 250 30 7,00 2.500 x 1.500 x 1.850
MP 6000 n/a 450 2 x 30 7,00 6.000 x 1.850 x 2.000
MP 7500 n/a 600 2 x 30 13,00 7.800 x 1.850 x 2.000

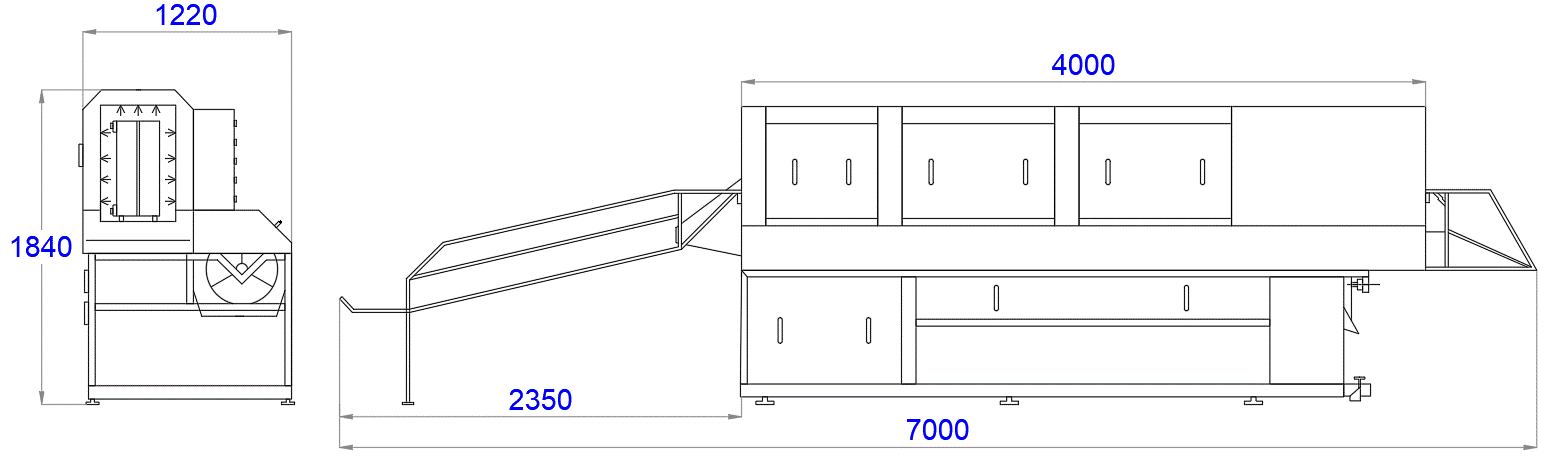

schematic
