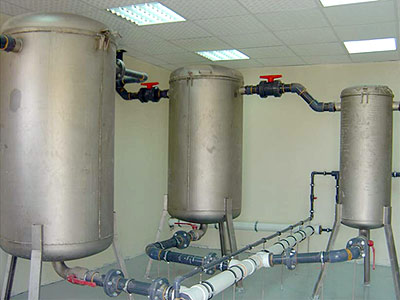

Vacuum Transport System

Vacuum systems are developed for a trouble free transport of blood and offal without using water. There is a range of vacuum pumps available with a variety of motor powers, from 0.75kW up to 22.00kW.

vacuum trasport systemThe size of the pump depends on the plant size and the installed machines.

The stainless steel vacuum tanks can be supplied in two standard sizes: 180 litres and 800 litres. Other sizes are available as well as galvanized tanks that can be provided upon request.

The tanks are equipped with an opening lid on top for easy cleaning purposes as well as separate connections for cleaning by water and unloading, supported by compressed air.





Vacuum Transport System: technical data



Type Capacity
cbm/h
Plant
capacity
bph
Electricity
kW
VG 30 20 Depending
on installed
machinery
1.10
VG 95 70 2.20
VG 155 120 4.30
V 330 280 7.50
CRVS 650 22.00
CRVS 850 22.00
