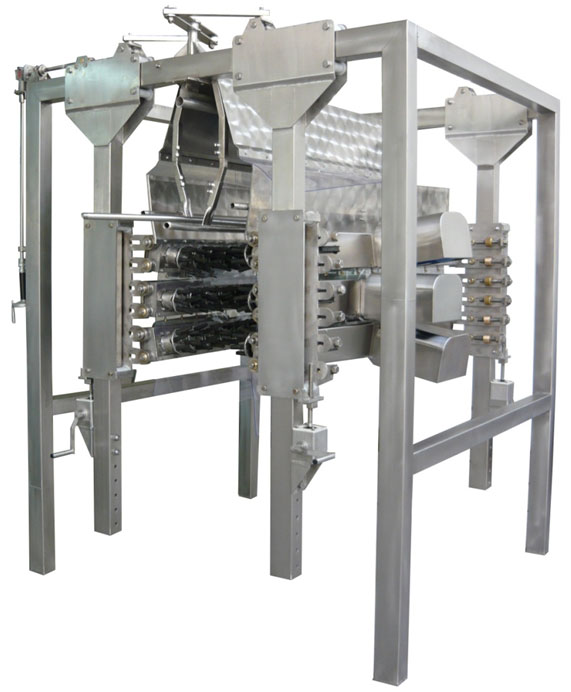

Beam Plucker

Type: SLB

The SLB in-line beam picker is designed for defeathering all types of poultry.

Design and operation:
The supporting structure and casing are made of stainless, acid-resistant steel. The picking heads are driven by special gear wheels, and each beam with heads is powered by a separate electric motor, placed in a stainless-steel enclosure.





The picker is equipped with mechanical lifts, which allow for adjusting the height of the picking beams. The position of beams with picking heads can be adjusted to the size of poultry.











Technical specifications:



SLB-48

SLB-72

SLB-96

SLB-144

Motor power

4 x 2.2kW

6 x 2.2kW

12 x 1.5kW

12 x 2.2kW

Picking length

1,050mm

1,600 mm

2,100mm

3,200mm

Power supply

400V;  50Hz

Length

1,300mm

1,800mm

2,310mm

3,900mm
