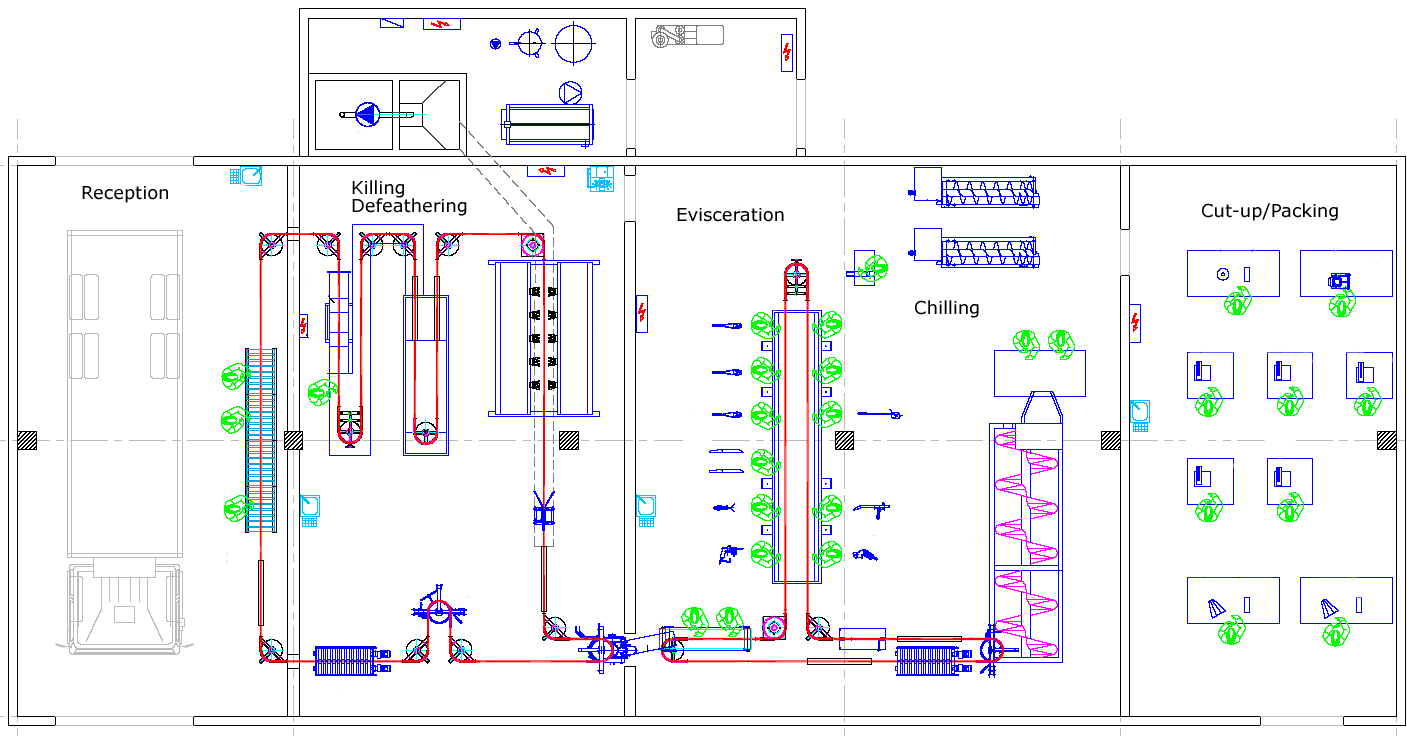

800 bph Factory Layout
Mouseover the image to see more detail below. Click on a "hotspot" and click to view the equipment.
Technical Details for a 800bph Poultry Processing Plant
|Kind of birds||Broiler|
|Average live weight||1,500 Grams|
|Minimum live weight||1,400 Grams|
|Maximum live weight||2,000 Grams|
|Capacity per hour||800 Birds|
|Bleeding time||2 Minutes|
|Scalding temperature||60 °C|
|Scalding time||2 Minutes|
|Pre-chilling time||40 Minutes|
The above mentioned data together with the layout of the recommended machines are based on general experience & information gathered from the client. According to local operating conditions and differences in bird's size, the above information and details may differ. We cannot be held responsible if the details do not correspond to the operating conditions.
Livestock is not a uniform product and varies in weight and size. Accordingly it may be necessary to re-adjust the machines and equipment during operation, if the weight range within the flock processed varies by more than +/- 200 grams.
This especially applies to the equipment in killing / defeathering, eviscerating and cut-up area. Any claim of malfunction of the machines due to higher weight differences than mentioned before cannot be accepted.
