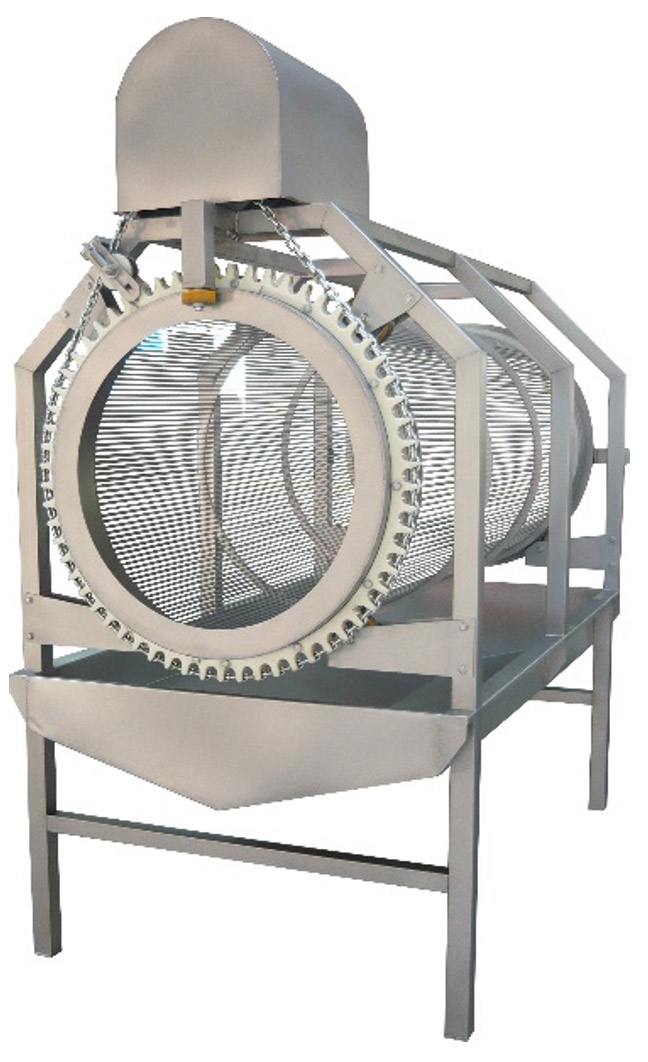

CARCASS WATER SEPARATOR

The device is used to dry the carcass after the water chilling process. It removes water which is trapped inside the carcass.



Operation

The main assembly of the separator is a rotating drum made of rods set on rollers. In the lower part of the body there is a sewage chute. The separator is driven by a geared motor, which is mounted in the upper part of the frame. The torque is transferred to the cylindrical sieve by a 1" technical chain. The carcasses, after water separation from them, move to the outlet. The length of the separator depends on the capacity of the machine.





Advantages

• High efficient for the removal of water



















TECHNICAL SPECIFICATION

Installed power	1,5 kW
Power supply	400 V, 50 Hz
Diameter of drum	900mm
