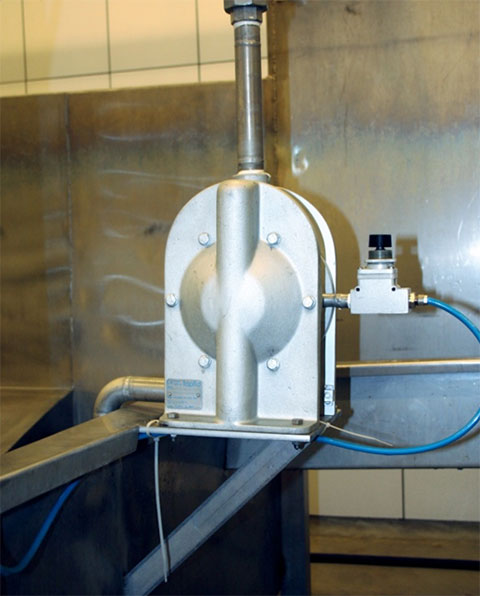

Blood Pump

Type: T-120/T-220

The blood pump is designed for transporting blood from the bleeding trough to the reception point.

Design and operation:
The blood pump is a membrane pump powered by compressed air. It is fed from the blood trough. From there, through a system of acid-resistant, stainless piping, blood can be transported to any place, in accordance with the design of the plant. The pump is made of aluminium.





Technical specifications:

Type of pump:                T-120         T-220

suction pipe diameter    -     1"         1½"

delivery pipe diameter     -  1"          1½"

max air pressure      -       8 bar        8 bar

max capacity     -     120 l/min     220 l/min

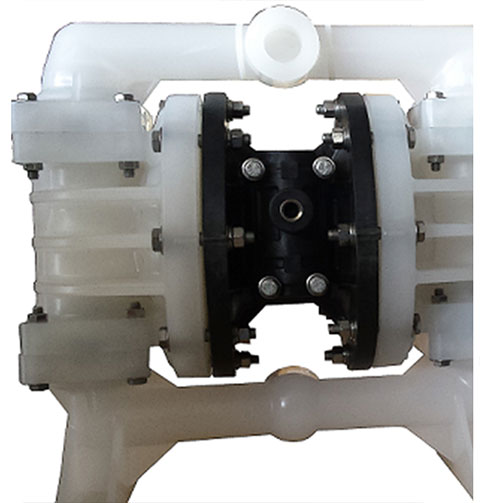

BLOOD PUMP

Type  PE – 10

The blood pump is designed for transporting blood from the bleeding trough to the reception point.

Design and operation:
The blood pump is a membrane pump powered by compressed air. It is fed from the blood trough. From there, through a system of 25mm acid-resistant, stainless piping, blood can be transported to any place, in accordance with the design of the plant. Pump to be equipped in special valves Max-Pass, which access to transport solid particles contented in medium till 19mm. Pump to be manufactured from durable plastic material.



Technical specifications:
Max. capacity (l/min) 155
Max. air pressure (bar) 8,2
Max. size of
solid particles in medium (Ø in mm) 19
In/output 1" Weight (kg) 9
