EVISCERATION EQUIPMENT
giblet harvesting



Giblet Harvesting

Evisceration troughs are used in manual poultry evisceration lines and are designed for transporting the evisceration offal.

Design and operation:
The evisceration trough is made of stainless, acid-resistant materials. The length and width of the trough is adapted to the size and quantity of processed poultry. Depending on the width, working stands can be placed on one or both sides of the trough. On the rim of the trough, there are tables for tools and water valves with 10-second time-lag switches which ensure economical water usage.





NOTICE: Trough height should be adjusted to the height of the overhead conveyor and platforms on the working stands.

Height adjustment is possible in the range between 500 and 1,100 mm.

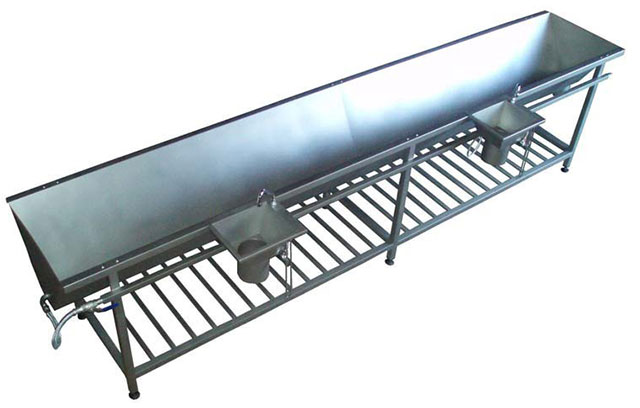

giblet harvestin trough




Technical specifications:
Standard segment length       -           2,000 mm (other lengths are available at customer’s request)
Standard trough width             -           600 or 900 mm (for 600 mm troughs the working stands are located on one side; for 900 mm troughs – on both sides)
Number of stands per 1 segment       -           for 600 mm troughs - 2 stands, for 900 mm troughs – 4 stands

Technical data: Giblet Harvesting System

Type Shackle
distance
Capacity
bph
Water
cbm/h.
Electricity
kW/h
Vacuum
cbm/h
Compr. air
cbm/h
IB any various 6 3 x 0.37 n/a n/a
