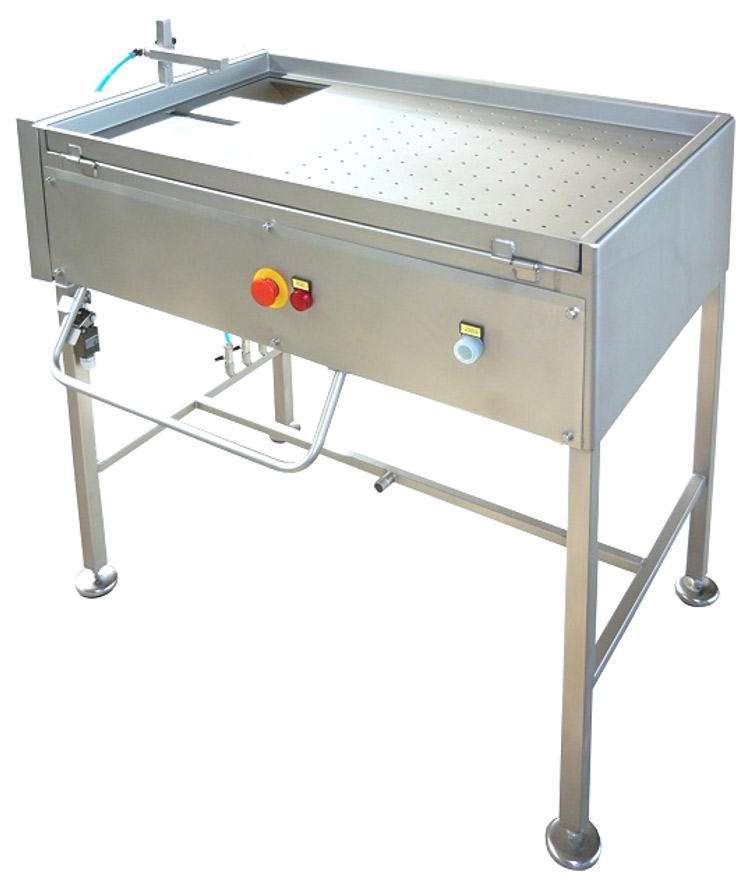

Manual Gizzard Peeler

Type: CZ-1 : single station

The gizzard cleaner is designed for peeling the horny skin off internal gizzard walls.

Design and operation:

The gizzard cleaner is made of stainless, acid-resistant materials. Drive from the motor is transmitted by gears directly to toothed working rollers. Opened gizzards are manually placed on the rollers, where the inner skin is peeled thanks to appropriate toothing and rotational speed. The most effective solution is to use the cleaner in combination with the gizzard washer and cleaner. Proper defatting and removal of gastric contents allow for achieving high capacity and proper quality of processed gizzards. Such combination is also essential for the durability of the machine – particularly of the working rollers.



Technical specification:
Capacity:                     - 1,200 pieces per hour
Power supply:             - 380V / 50Hz
Installed power:          - 1.1kW
Water connection        - warm water, ½”
Operation:                   - 1 person

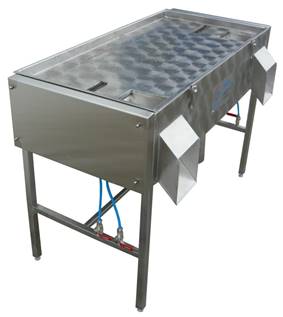

Type: CZ-2 : Dual station

Design and operation:
The same specification as above but designed for two operators.





Technical specifications:
Capacity:                     - 2400 pieces per hour
Power supply:             - 380V / 50Hz
Installed power:          - 2 x 1.1kW
Water connection        - warm water, ½”
Operation:       - 2 persons
